The COMPACT-20B V (Vertical Version)

NOVAIR USA COMPACT 20B V Vertical Version Oxygen Generator

Unique vertical design means you can plug it in, roll it around, or and make it easily fit anywhere you want.

NOVAIR’s COMPACT-20B V Vertical version allows you to eliminate the costs of transportation, storage and cylinder rental so that you can produce your own oxygen with a concentration of 93% +/-3% using Pressure Swing Adsorption (PSA) technology by just plugging it in.

Dependable and Durable

Each individual COMPACT-20B V oxygen generator is assembled and tested in our New York State production facility. The COMPACT-20B V internal air compressor, filtration system, zeolite sieve, surge tank and flow control system were designed for you to be able to access oxygen 24×7. Our oxygen generators are built to last, from the tanks right down to the oxygen-clean brass tubing and valves. The unit has auto-start and auto-stop, based on the need for oxygen and the pressure in the storage tank. The COMPACT-20B line has worked for hundred of users located in the harshest environments in the world.

Economical and Simple to Maintain

With the COMPACT-20B V, all you need is the ambient air around you and inexpensive electricity to produce as much O2 as you want, anytime, anywhere. Now you can eliminate the unnecessary costs of transportation, storage, and cylinder rental. The COMPACT-20B V uses less than 3 kW of electricity to deliver up to 20 cubic feet of oxygen per hour. With a lighted on/off switch, hours meter, custom flow gauges and controls, the COMPACT-20B V is truly user-friendly. Just plug it in, turn it on and set the desired pressure and flow and you’re done. Works well in Pet Clinics and animal hospitals, as well as for a range of industrial applications where you need to wheel in oxygen onsite.

Basic Product Info


Oxygen Concentration:

93% (±3%)

Carbon Dioxide Limit:

≤ 300 ppm

Carbon Monoxide Limit:

≤ 10 ppm

Oxygen Dewpoint:

-60 °F (-51 °C)

Oxygen Flow Rate:

20 Standard Cubic Feet per Hour (SCFH) / 9.5 Liters Per Minute (LPM)

Oxygen Pressure:

Up to 85 psi (6 bar)

Power Supply:

1 Phase, 115 VAC 10 A, 60 Hz Standard (1 Phase, 230 VAC 5A 50 Hz and 1 Phase 230 VAC 5A 60 Hz Optional)

Noise Level:

68 dBA at 1m

Unit Size:

19in D x 69in H x 24in L (48cm D 175cm H x 61cm L)

Unit Weight:

220 lbs. (100 kg) with a tank size of 30 Gal (114 L)

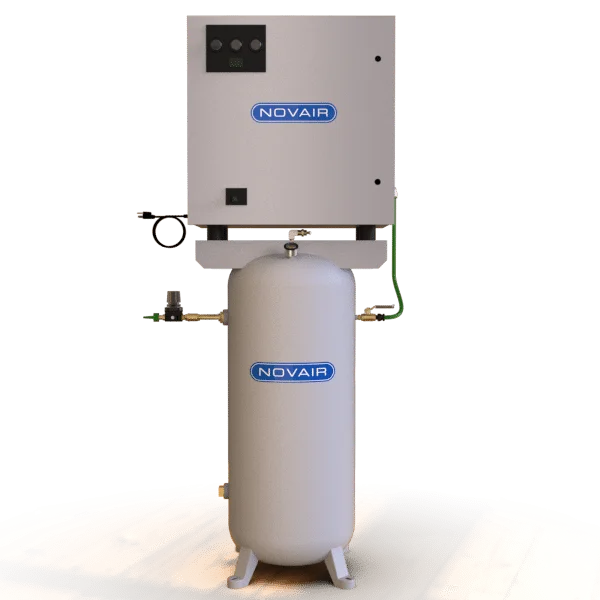

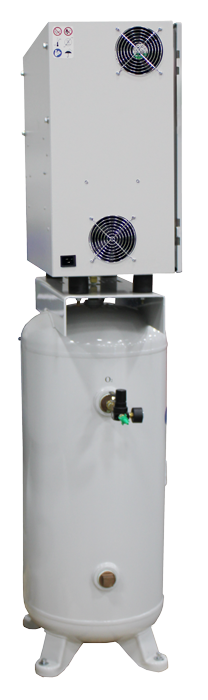

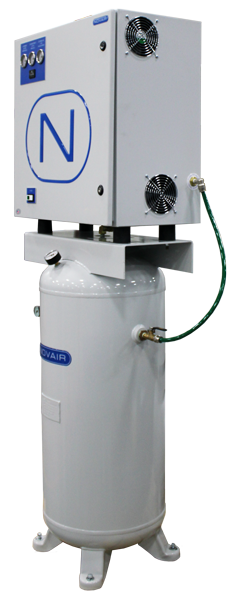

The COMPACT-20B V Vertical Version
Nicely designed to fit just about anywhere you need continuous flowing oxygen.
The COMPACT-20B V Vertical Version
Nicely designed to fit just about anywhere you need continuous flowing oxygen.
