CFP

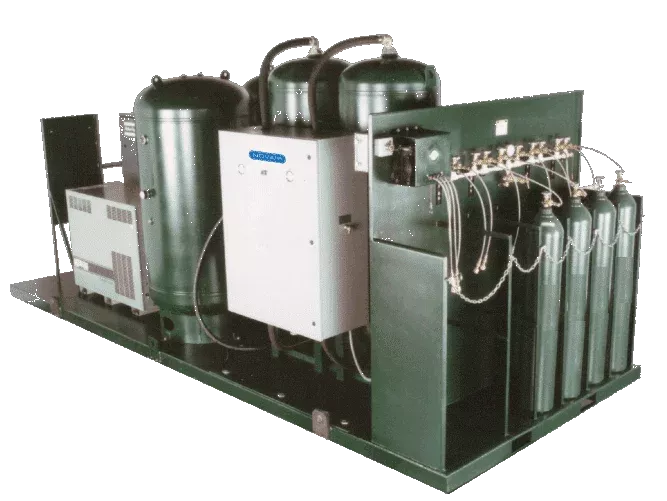

Oxygen Generators with Cylinder Filling Plant - Create a plant that fills as much oxygen as you need to elevate your organization
Cylinder Filling Plants (CFPs) come in standard sizes from large to jumbo, or can be tailored to meet your needs.
LOTS OF OXYGEN FILLING POWER
NOVAIR’s CFPs range from the sturdy CFP-100 plant all the up to, (and over if need be), the CFP-5500 plant with its output of over 5,500 Standard Cubic Feet Per Hour (SCFH) of 93% +/-3% concentration of gaseous oxygen, or 5 Metric Tonnes Per Day (TPD), are designed to produce large amounts of oxygen onsite and fill high pressure cylinders (up to 2200 psi) or to supply oxygen directly at high pressure.
BUILT TO YOUR NEEDS
NOVAIR’s CFPs can often be changed to fit a certain size or footprint, with more cylinders available, along with other alterations, so that it helps you maximize your oxygen-using business.
INSTALLED WORLDWIDE
You will find NOVAIR CFPs installed in healthcare and industrial organizations throughout the planet, some in the most extreme remote places, with thousands of satisfied customers.
Features and Advantages
Avantages
Never Worry About Delivery Again
- If you are in an area poorly served (unreliable oxygen supply and/or high prices) by the traditional oxygen delivery companies, you can now fill your own oxygen cylinders with as much oxygen producing power as needed.
- Can add multi- “H-sized cylinder” manifold to make sure you store and have enough oxygen on hand to trans fill smaller bottles.
- Plants are designed to be shipped worldwide in standard 20 or 40-foot containers for safe installation at your location, anywhere on the planet.
- On-site commissioning & training is available from a NOVAIR technician.
- Electrical power and an enclosure for the plant are all that is required at the customer’s site to get started.
Oxygen Generating Power, Anywhere
- Plants are designed to be shipped worldwide in standard 20 or 40-foot containers for safe installation at your location, anywhere on the planet.
- Onsite installation commissioning and training is available from NOVAIR technicians.
- Electrical power and an enclosure for the plant are all that is required at the customer’s site to get started.
Features
Key Features
- Touchscreen operator interface panel
- Complete CFP’s, capable of filling 8 to 180 cylinders per day are currently available in standard sizes.
- Can be configured with a footprint that best fits your business needs, including being placed in a container.
Options
NOVAIR’s Cylinder Filling Plant size is based on the number of high-pressure 6 m3 size K / H-sized oxygen cylinders that the plant can fill in 24 hours. Listed below is a quick reference on the model and size of the plants we offer. Please contact us about custom sizes and tailor made solutions:
- NOVAIR CFP-100 = 8 K/H cylinders/day
- NOVAIR CFP-175 =10 K/H cylinders/day
- NOVAIR CFP-250 = 20 K/H cylinders/day
- NOVAIR CFP-500 = 50 K/H cylinders/day
- NOVAIR CFP-650 = 60 K/H cylinders/day
- NOVAIR CFP-1000 = 100 K/H cylinders/day
- NOVAIR CFP-1250 = 120 K/H cylinders/day
- NOVAIR CFP-1800 = 180 K/H cylinders/day
Target Customers
Typical customers for this system include anyone in the remote healthcare settings, industries that need high amounts of high-purity oxygen such as Bicycle Manufacturing or Gold Mining, Metal Furniture Manufacturing, and many others.
Find or Design the Right Powerful Cylinder Filling Plant for Your Biz
