COMPACT-20B H
The COMPACT-20B H (Horizontal Version)Request a quote
A powerful oxygen generator that fits in a closet.
NOVAIR’s COMPACT-20B H Horizontal version allows you to eliminate the costs of transportation, storage and cylinder rental so that you can produce your own 93% +/-3% concentrated oxygen using Pressure Swing Adsorption (PSA) technology by just plugging it in.
Dependable and Durable
Every COMPACT-20B H oxygen generator is assembled and tested in our New York State production facility. The COMPACT-20B H internal air compressor, filtration system, zeolite sieve, surge tank and flow control system were designed for you to be able to access oxygen 24×7. From the tank assemblies to the oxygen-clean brass tubing and valves, our oxygen generators are built to last. They automatically start and stops based on the need for oxygen and the pressure in the storage tank. The COMPACT-20B line is even used to operating in the harshest environments of Africa, Asia, South America and the Yukon.Economical and Easy to Maintain
Oxygen is free! Eliminate the unnecessary costs of transportation, storage, and cylinder rental. The COMPACT-20B H uses less than 3 kW of electricity to deliver up to 20 cubic feet of oxygen per hour. With a lighted on/off switch, hours meter, custom flow gauges and controls, the COMPACT-20B H is truly user-friendly. Just plug it in, turn it on and set the desired pressure and flow and you’re done. Works well in Pet Clinics and animal hospitals, as well as for a range of industrial applications where you need to wheel in oxygen onsite.Basic Product Info
| Specification | COMPACT-20B H |
| Oxygen Concentration: | 93% (±3%) |
| Carbon Dioxide Limit: | ≤ 300 ppm |
| Carbon Monoxide Limit: | ≤ 10 ppm |
| Oxygen Dewpoint: | -60 °F (-51 °C) |
| Oxygen Flow Rate: | 20 Standard Cubic Feet per Hour (SCFH) / 9.5 Liters Per Minute (LPM) |
| Oxygen Pressure: | Up to 85 psi (6 bar) |
| Power Supply: | 1 Phase, 115 VAC 10 A, 60 Hz Standard (1 Phase, 230 VAC 5A 50 Hz and 1 Phase 230 VAC 5A 60 Hz Optional) |
| Noise Level: | 68 dBA at 1m |
| Unit Size: | 17in D x 46in H x 40in L (43cm D 117cm H x 102cm L) |
| Unit Weight: | 220 lbs. (100 kg) with a tank size of 30 Gal (114 L) |

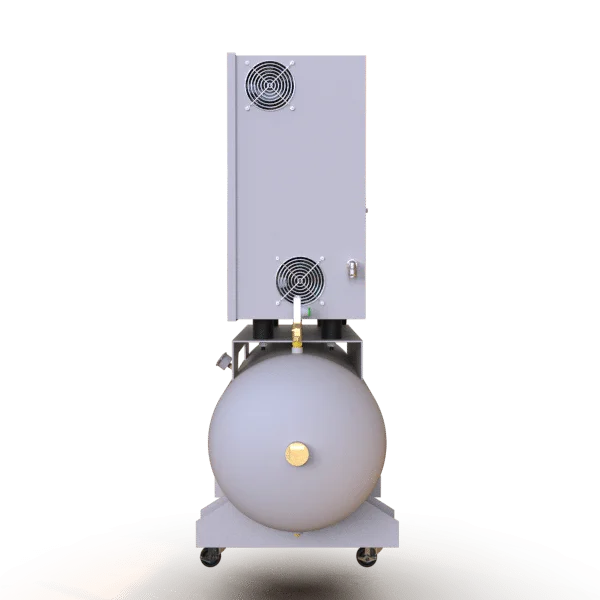

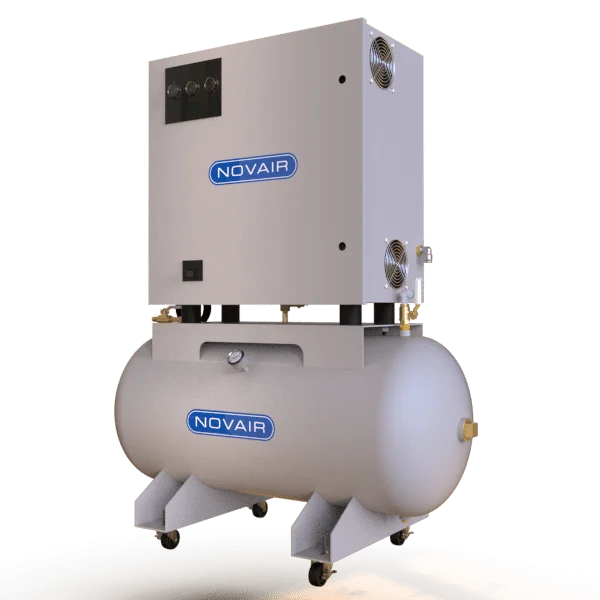

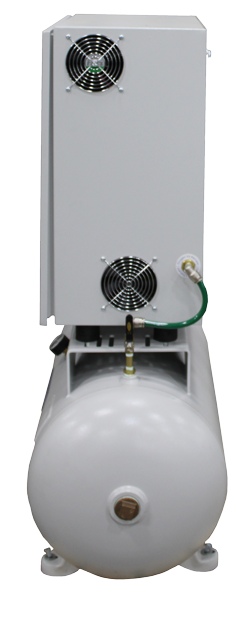

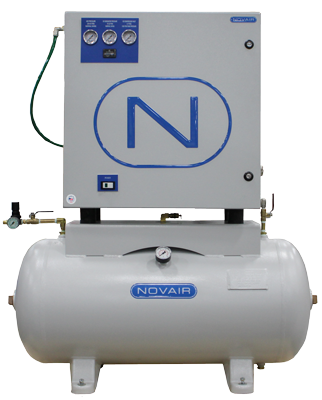

The COMPACT-20B H Horizontal Version
Fits in a closet or can be wheeled where you need it. It's so versatile and easy to use, it's truly "plug-and-play".

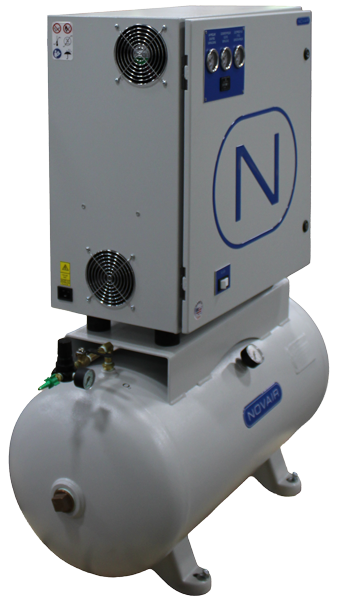

The COMPACT-20B H Horizontal Version
Fits in a closet or can be wheeled where you need it. It's so versatile and easy to use, it's truly "plug-and-play".See Other COMPACT Generators
